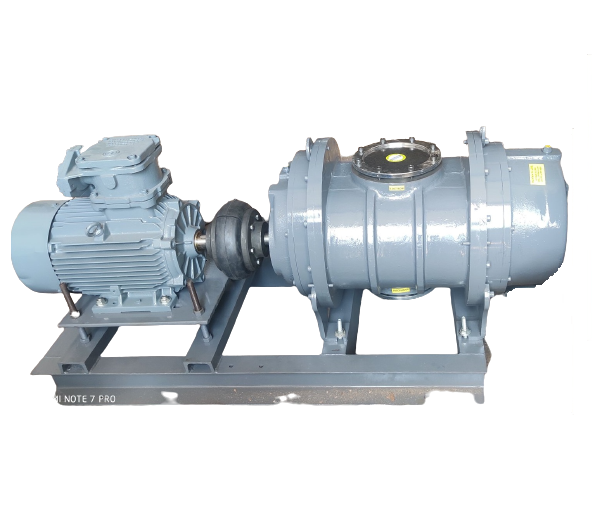

Mechanical vacuum booster
MECHANICAL VACUUM BOOSTER
AMIKON Make Mechanical Vacuum Booster Pumps, import substitutes, are used in growing number of applications where fast pump down times are required, and environment or energy usage concerns, rule out any alternative pump selection. AMIKON Booster Pumps enhance the performance, ultimate vacuum and pumping speed of oil-sealed/water-ring/dry vacuum type of mechanical pumps, which are widely used in the industry.
AMIKON Make Vacuum Boosters are positive displacement pumps with two figure eight shaped impellers rotating in opposite directions inside the casing. As each lobe of an impeller passes the blower inlet, it traps a quantity of air equal to exactly one fourth the displacement of the blower.
This entrapment occurs four times per revolution. The entrained air is forced around the case to the blower outlet. Timing gears accurately position the impellers in relation to each other to maintain the minute clearances so vital to the high volumetric efficiency of the pump.
AMIVAC SERIES
AMIKON Make
MECHANICAL VACUUM BOOSTER
Mechanical Vacuum Boosters are available in both Water-cooled and Air cooled models.
We offer total system to meet specific requirements complete with primary pump (Backing pump) and instrumentations to perform automatic/semi-automatic operations.
The Boosters are used in series with any Vacuum pumps like Water ring or oil seal, dry type or Ejector System.
Suction capacity : 260 M3/hr. to 5250 M3/hr.
Maximum vacuum : 0.001 Torr.
AMIKON Make Vacuum Boosters Advantages
- High vacuum of the order of 0.001 Torr or better
- High pumping speeds at low pressures, capacity is boosted by 8 to 10 times or more
- Relatively low power consumption for such performance boosting
- Considerable reduction in pump down time of vacuum machine
- Prevents Oil back streaming from Rotary pumps
- Dry Pumping suitable for Gas/Vapour Loads
- Entirely mechanical, light weight and compact design
- High operating speeds because of dynamically balanced rotors and helical ground gears for long life and quiet operation
- Can be mounted separately from the backing pump or directly on the inlet of the backing pump
- ISO Flanges
- Unique impeller design for high volumetric efficiency
- Compatible with all vacuum systems
- Efficient air-cooled design
- Machines are air cooled so water-cooling in not required
- Suitable for various Gases such as Air, Town Gas, Natural Gas, Nitrogen, Hydrogen, Carbon dioxide, inert gases.
- Effective Sealing Ensured By Means of Temperature-insensitive labyrinth system.
- High Precision chemical timing gears for reliability and long life.
- Overhung V-Belt drive for all operating pressure ranges. Direct coupling also possible
- Dynamically balanced rotating components to ensure vibration free operation.
- Machine shaft height matched with standard IEC Motor Frame size.
- Solid, noise-absorbing construction in grey cast iron.
Products Range :
- Suction Capacity from 260 M3/Hr to 5250 M3/Hr.
- Pressure Upto 1 bar
- Maximum Vacuum upto 0.001
WORKING PRINCIPLE
AMIKON Make Vacuum Boosters are positive displacement pumps with two figure eight shaped impellers rotating in opposite directions inside the casing. As each lobe of an impeller passes the blower inlet, it traps a quantity of air equal to exactly one fourth the displacement of the blower.
This entrapment occurs four times per revolution. The entrained air is forced around the case to the blower outlet. Timing gears accurately position the impellers in relation to each other to maintain the minute clearances so vital to the high volumetric efficiency of the pump.
