Oil Lubricated Rotary Vane Vacuum Pumps
OIL LUBRICATED VACUUM PUMPS

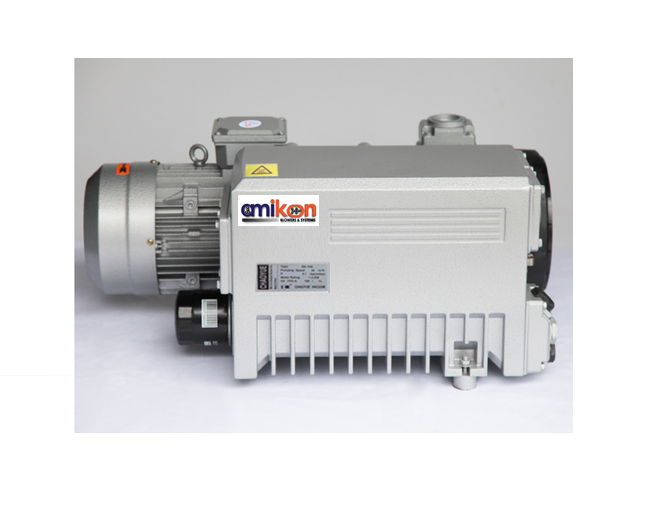

AMIKON VACUUM Rotary Vane Vacuum Pumps are single stage, oil lubricated vane type with inbuilt oil-circulation and anti-suckback system.
The main assembly of the pump comprises of a dynamically balanced rotor with three or four specially treated fiber vanes which is mounted in a stator. When the rotor is made to rotate with the aid of the connected electric motor, these vanes move in & out of the slots by centrifugal force & slide against the walls of the stator pushing thereby the trapped air out of the stator & prompting the atmospheric air to gush in spontaneously to fill in the empty space. This continuous process happening at a high speed, gives rise to an unbreakable stream of Vacuum and Pressure. The oil circulation system is so designed that after providing lubrication to all the vital components of the pump, oil travels ahead without contaminating the air and gets automatically collected in its original chamber for re-circulation.
ALVP SERIES
Oil Lubricated Series
AMIKONVACUUM Rotary Vane Vacuum Pumps are single stage, oil lubricated vane type with inbuilt oil-circulation and anti-suckback system.
The main assembly of the pump comprises of a dynamically balanced rotor with three or four specially treated fiber vanes which is mounted in a stator. When the rotor is made to rotate with the aid of the connected electric motor, these vanes move in & out of the slots by centrifugal force & slide against the walls of the stator pushing thereby the trapped air out of the stator & prompting the atmospheric air to gush in spontaneously to fill in the empty space. This continuous process happening at a high speed, gives rise to an unbreakable stream of Vacuum and Pressure. The oil circulation system is so designed that after providing lubrication to all the vital components of the pump, oil travels ahead without contaminating the air and gets automatically collected in its original chamber for re-circulation.
AMIKON Vacuum Rotary Vane Vacuum Pumps are single stage, oil lubricated vane type with inbuilt oil-circulation and anti-suckback system.
Features:
- High Pumping Speed
- High Water-Vapour Tolerance
- Dynamically Balanced Rotor
- Built in Oil Circulation System
- Air Cooled
- Built-in Anti-Suckback System
- No Oil Mist / Fumes
- Low Noise Level
- Low Power Consumption
Applications
These models are quite versatile and find their applications in Pharmaceutical & Chemical Industries for Distillation, Evacuation & Filtration and is suitable for host of other general Vacuum applications like Holding, Conveying, Glass Blowing, Lamination, Labeling, Paper Feeding, Vacuum Forming, Blister Packing, Bottle Filling, Vacuum Sealing & Food Processing etc.
Products Range :
- Suction Capacity from 10 M3/Hr to 200 M3/Hr.
- Pressure Upto 150mmhg, 20 PA
- Vacuum upto 720mmhg
WORKING PRINCIPLE
The main assembly of the pump comprises of a dynamically balanced rotor with three or four specially treated fiber vanes which is mounted in a stator. When the rotor is made to rotate with the aid of the connected electric motor, these vanes move in & out of the slots by centrifugal force & slide against the walls of the stator pushing thereby the trapped air out of the stator & prompting the atmospheric air to gush in spontaneously to fill in the empty space. This continuous process happening at a high speed, gives rise to an unbreakable stream of Vacuum and Pressure. The oil circulation system is so designed that after providing lubrication to all the vital components of the pump, oil travels ahead without contaminating the air and gets automatically collected in its original chamber for re-circulation.
